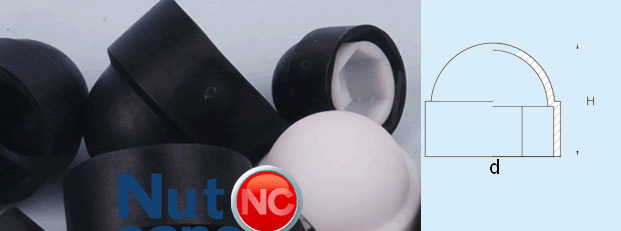

Product Description：

Materical :LDPE

cO

Dimensions	Width acrossFlats	Thread Descriptions	Reference No.
D	d	h1	H	h3	SS*	Metric Thread	DIN 11 (BS 84)	DIN 240	BSP
5.9	8	6.5	7.3	3	6	M 3.5
6.9	10	9.3	9.8	6.5	7	M 4
7.9	10.9	8.5	9.5	5	8	M 5
9.8	12.9	12	13	6	10	M 6
10.8	14.1	12	13	6.5	11	M 7			.1/4 "
12.8	16.8	14	15	9	13	M 8		M	8 x 1
16.7	21.3	18.5	19.5	9	17	M 10		M 10 x 1	.3/8 "
18.7	23.6	20	21.5	11	19	M 12		M 12 x 1.5	.7/16 "
21.7	27.5	22.5	24	12	22	M 14		M 14 x 1.5	.1/2 "
23.7	29.8	25.5	27	14	24	M 16		M 16 x 1.5
26.8	34	29	30	15	27	M 18	M 18 x 2	M 18 x 1.5	.5/8 "
29.8	37.7	31	33.2	17	30	M 20	M 20 x 2	M 20 x 1.5
31.8	39.7	34	36.2	19	32	M 22	M 22 x 2	M 22 x 1.5	.3/4 "
35.8	44.4	38	39.2	20	36	M 24	M 24 x 2	M 24 x 1.5	.7/8 "
								M 26 x 1.5
40.8	50.1	44	46.5	23	41	M 27	M 27 x 2	M 27 x 1.5	1. "
								M 28 x 1.5
45.8	55.9	49	51.5	25	46	M 30	M 30 x 2	M 30 x 1.5	1.1/8 "
49.8	60.5	53	55.5	27	50	M 33	M 33 x 2	M 33 x 1.5
54.8	67	57	59.5	30	55	M 36	M 36 x 2	M 36 x 3
								M 38 x 1.5
59.7	72	60	62.5	38	60	M 39	M 39 x 3	M 39 x 1.5
								M 40 x 1.5
63.7	76.5	63	65.5	42	65	M 42	M 42 x 3	M 42 x 1.5	1.5/8 "
69.7	85.5	73	75.5	38	70	M 45			1.3/4 "
75	91.6	78.5	81	41	75	M 48			1.7/8 "
80	98	83.4	86.2	43.5	80	M 52			2. "
85	104.2	88.6	91.6	48	85	M 56			2.1/4 "
95	116.7	102	105.5	55	95	M 64			2.1/2 "

Keywords： BSP Nut Caps,Metric Thread Nut Protection Caps
